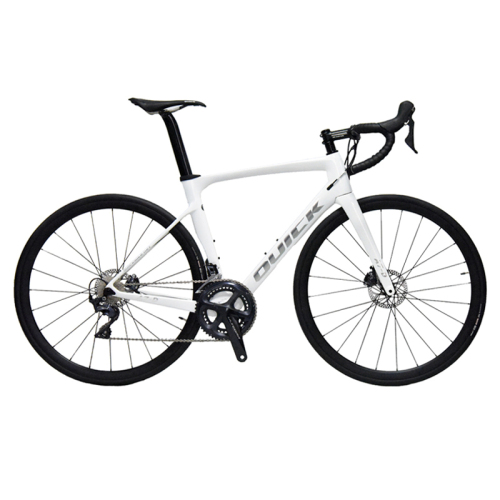

QUICK A7-D Disc Brake Carbon Fiber Road Bike
▲The ACMT integrated carbon fiber integrated molding technology of Quick includes MONOLITH integrated molding technology, front fork integrated molding technology, EPS inner mold molding technology, full carbon fiber integrated molding hook claw, and metal-free fork shoulders, etc., which are the embodiment of the brand's power.
▲Both painted logos are made of brushed silver, which is very textured. With the simple and atmospheric frame color, the A7-D relaxed version looks very good.
▲The Quik A7-D is equipped with an aluminum alloy handlebar. The flat handlebar has a good aerodynamic effect, which is in line with the positioning of the A7-D as an aerodynamic disc brake road bike.
▲Carbon fiber drop-shaped seat tube + titanium bow seat cushion
▲The A7-D easy version is equipped with Quick RA30 aluminum alloy straight-pull wheels and Zhengxin puncture-resistant tires, which are very suitable for daily training and riding.
▲The CXVD crankset is excellent. The large-area hollowing helps to reduce weight, and the CNC integrated molding process is adopted to ensure strength and rigidity.
▲PF30 full carbon bottom bracket for excellent power transfer

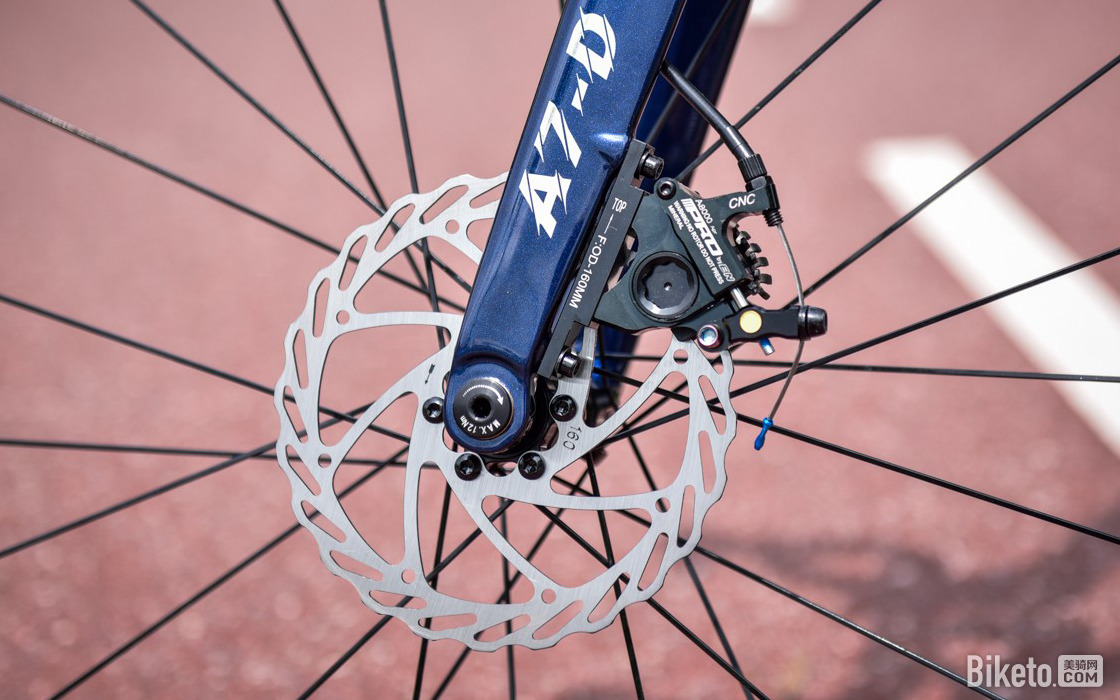

▲The "D" in A7-D stands for Disc, which is disc brakes. 12mm thru-axles are used in the front and rear of the vehicle to effectively improve the stability of the wheelset.
▲The Quick A7-D Easy Edition is equipped with a pair of PRO CNC wire-pulling oil discs, which push the piston through the wire-pulling method to obtain sufficient braking force.
▲The weight of a 51-yard vehicle is 8.7kg (excluding pedals)
Specifications:
| COLOR | Galaxy Blue / White |
| SIZE | 42 / 45 / 48 / 51 / 54 / 57 |
| FRAME | QUICK A7-D Carbon fiber frame |
| GROUPSET | SHIMANO R7020 22S Groupset |
| AXIS | PF30 Axis |
| DISC | 140MM Stainless steel disc |
| WHEEL SET | Aluminum alloy 30MM height disc |
| TIRES | Chaoyang tires 700*25C |
| HANDLEBAR | QUCIK Aluminum alloy handlebar |
| STEM | QUCIK Aluminum alloy stem (80MM-130MM) |
| SADDLE | QUCIK Carbon fiber saddle |
| SEAT POST | QUCIK Carbon fiber seat post |
| WEIGHT | 8.3±0.1kg (Minimum Size) |
